Batam X-ray Inspection Machine and Color Sorter

Batam X-ray Inspection Machine and Color Sorter

At China Nut and Roasted Seeds Industry Exhibition 2021 site, Shanghai Techik was interviewed by Anhui Television.


In the interview, Techik working staff showed the audience the sorting and inspecting result of batam. Techik color sorters can sort out broken batams, insect bites (can reject obvious insect bites on the surface of batam), stem, wooden sticks, blackened batams, moldy grains, open batam from shelled batam. Techik X-ray inspection system can detect the defects such as worms and hollow fruits inside the shelled batam.


Batam sorting solution

Aiming to solve the pain points, such as wormhole, double nut kernels, dry nut, fold nut, half nut and broken nut, in nuts industry, Shanghai Techik newly launches perfect batam sorting solution, in which customers can choose one or some of the following equipment to deal with their problem: intelligent color sorter, intelligent crawler color sorter, seed kernel intelligent color sorter, wormhole powder X ray machine, and intelligent X-ray inspection system for bulk product. At present, the solution is so mature that it is widely used and verified in the market and widely praised by industry customers.


CONTACT US
SEND INQUIRY NOW
Phone:
0086-13564655826
WeChat:
0086-13795234948
WhatsApp:
0086-13564655826
Main Advantages
Color Sorter and X-ray Inspection System Intelligent Production Line
Intelligent setting

1. Intelligent setting: simple setting, completed within 5 minutes

2. Intelligent algorithm, with accurate and stable effect

3. DIY your own selection classification, done by one click

Hardware advantage

1. High-definition 5400 pixel full-color sensor

2. High-brightness LED cold light source

3. High-frequency solenoid valve, intelligent algorithm tracking, precise rejection

4. Optional smart dust collection system, which can automatically clean up the dust in the feed and prolong the life of the equipment

Software advantage

1. Intelligent monitoring of background data, remote setting & bug locking

2.  Data visualization, storage integration, and one-click replacement of popular programs

3. Big data, cloud storage, free download

High resolution detector

1. 4-5 Times better in exposure compared with standard 0.4mm detector.

2. Higher sensitivity, longer service time, low radiation and maintenance cost.

Easy installation

1. Easy installation and setting.

2. Remote setting is possible.

Completed solution

1. Different configuration based on different requests

2. Various rejecter systems

Parameters

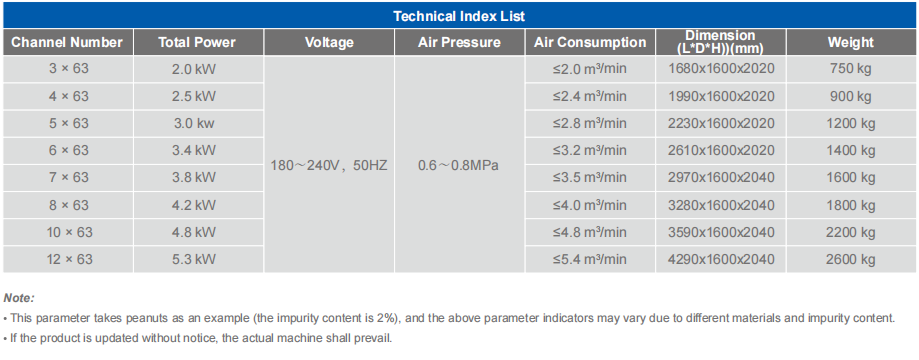

Intelligent Chute Color Sorter



Parameters

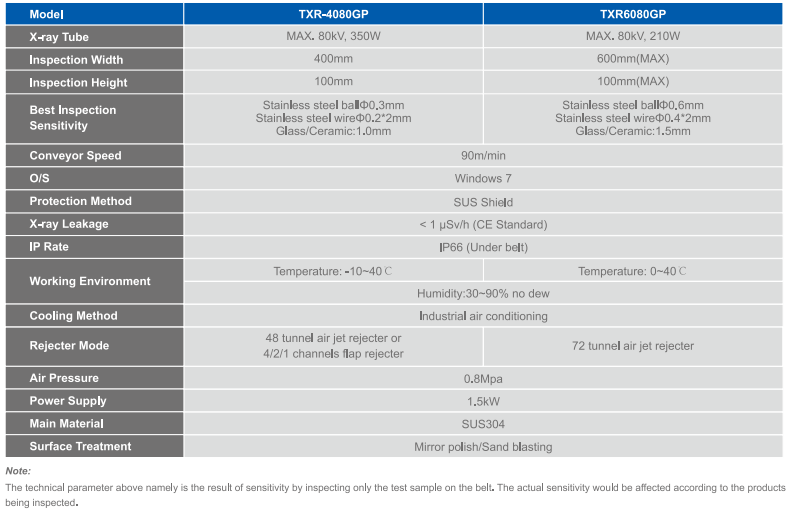

Intelligent X-ray Inspection System
