Batam Kernel X-ray Inspection Machine and Color Sorter

Batam Kernel X-ray Inspection Machine and Color Sorter

Shanghai Techik was interviewed by Anhui Television during China Nut and Roasted Seeds Industry Exhibition 2021.

At exhibition site, Techik staff demonstrated the operation of intelligent production lines for contamination detection of batam kernels. For batam kernels, Techik color sorters can sort out and reject broken, yellow spot, sprinkled, insect bites (can reject obvious insect bites on the surface of batam); X-ray inspection system can find out and remove foreign bodies such as plastic, rubber, wooden pole, stone, mud block, glass, metal. What's more, the damage of batam kernel, worm bites, double kernel, wrinkles and other defects can also be detected by Techik sorting and inspecting equipments.

Techik Color Sorter + Intelligent X-ray Inspection System aim to help you achieve 0 impurity with 0 labor.

Batam sorting solution

Aiming to solve the pain points, such as wormhole, double nut kernels, dry nut, fold nut, half nut and broken nut, in nuts industry, Shanghai Techik newly launches perfect batam sorting solution, in which customers can choose one or some of the following equipment to deal with their problem: intelligent color sorter, intelligent crawler color sorter, seed kernel intelligent color sorter, wormhole powder X ray machine, and intelligent X-ray inspection system for bulk product. At present, the solution is so mature that it is widely used and verified in the market and widely praised by industry customers.

Main Advantages
Color Sorter and X-ray Inspection System Intelligent Production Line
Intelligent setting

1. Intelligent setting: simple setting, completed within 5 minutes

2. Intelligent algorithm, with accurate and stable effect

3. DIY your own selection classification, done by one click

Hardware advantage

1. High-definition 5400 pixel full-color sensor

2. High-brightness LED cold light source

3. High-frequency solenoid valve, intelligent algorithm tracking, precise rejection

4. Optional smart dust collection system, which can automatically clean up the dust in the feed and prolong the life of the equipment

Software advantage

1. Intelligent monitoring of background data, remote setting & bug locking

2.  Data visualization, storage integration, and one-click replacement of popular programs

3. Big data, cloud storage, free download

High resolution detector

1. 4-5 Times better in exposure compared with standard 0.4mm detector.

2. Higher sensitivity, longer service time, low radiation and maintenance cost.

Easy installation

1. Easy installation and setting.

2. Remote setting is possible.

Completed solution

1. Different configuration based on different requests

2. Various rejecter systems

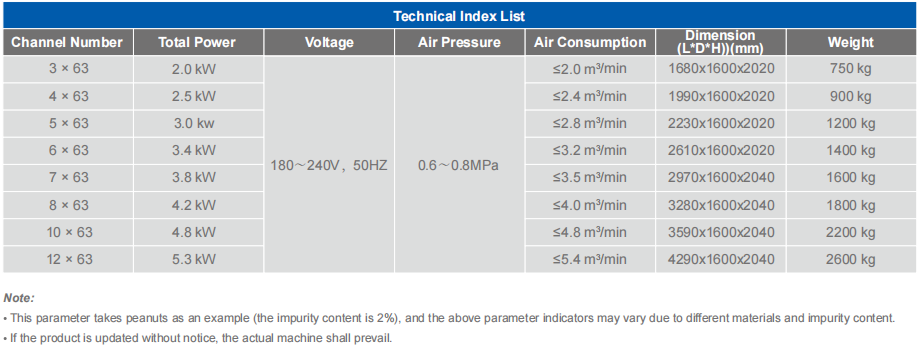

Intelligent Chute Color Sorter

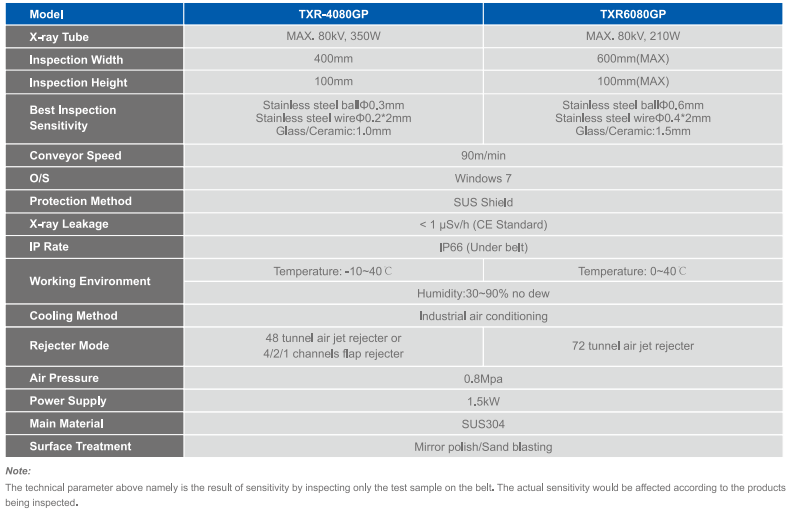

Intelligent X-ray Inspection System
