Luncheon Meat X-ray Inspection System

Luncheon Meat X-ray Inspection System

Techik Meat X-ray Inspection System has been widely used in canned luncheon meat industry. Any hard bones, broken bones, metal, non-metal foreign objects are visible in Techik X-ray inspection system image, which will be rejected according to clients demands. Besides luncheon meat, other canned food such as canned milk, canned fruits, and etc, also can be inspected by X-ray Inspection System.  has super product innovation, strong R & D strength and strict quality management awareness.


Recommended use of X-ray inspection systems

1. Not only metal contaminants, but other non-metals such as stones, ceramic, glass as well.

2. Aluminum film packaged food and metallic packaged food

3. High salinity food, such as pickles which has strong product effect

4. Canned food

5. High requirements for the inspection of SUS

6. Defect detection, such as tablet defect.


CONTACT US
SEND INQUIRY NOW
Phone:
0086-13564655826
WeChat:
0086-13795234948
WhatsApp:
0086-13564655826
Main Advantages
High resolution detector

4-5 times better in exposure compared with standard 0.4mm detector

With high resolution detector, low power generator is required, higher sensitivity, longer service time, low radiation and maintenance cost.

High IP protection level

X-ray detector: IP67

Inspection tunnel: IP67

IP69K for meat and seafood products

TIMA platform

High Sensitivity and Accuracy

Low Energy Consumption and Low Radiation

Modularized Hardware Platform

High Level Hygienic Design

Excellent Image Processing Algorithm


User-friendly

Big touch screen

Multiple language

Automatic monitoring interface

Ethernet and USB port

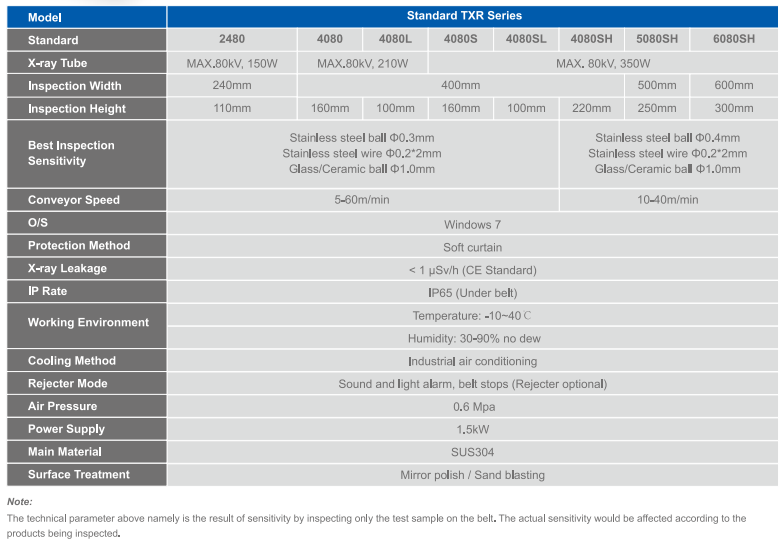

Parameters
Standard X-ray Inspection System

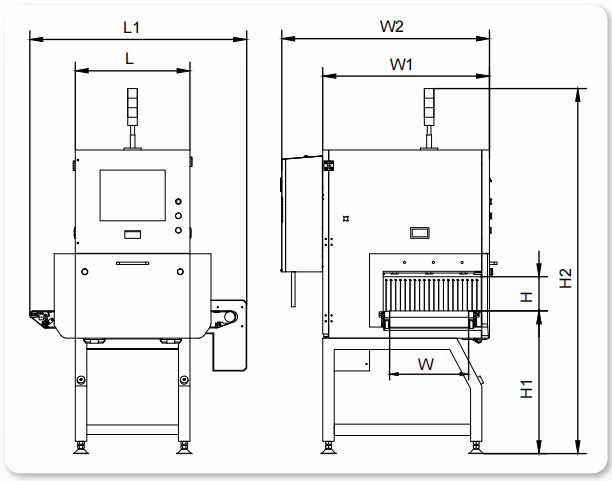

External Dimensions
Standard X-ray Inspection System
