X-ray Inspection System

X-ray Inspection System

X-ray Inspection System takes advantages of the penetrating power of X-ray to detect contamination. It can achieve a full range of contaminants inspection including metallic, non-metallic contaminants (glass, ceramic, stone, bone, hard rubber, hard plastic, etc.). It can inspect metallic, non-metallic packaging and canned products, and the inspection result will not be affected by temperature, humidity, salt content, etc.


Recommended use of X-ray inspection systems

1. Not only metal contaminants, but other non-metals such as stones, ceramic, glass as well.

2. Aluminum film packaged food and metallic packaged food

3. High salinity food, such as pickles which has strong product effect

4. Canned food

5. High requirements for the inspection of SUS

6. Defect detection, such as tablet defect.

CONTACT US
SEND INQUIRY NOW
Phone:
0086-13564655826
WeChat:
0086-13795234948
WhatsApp:
0086-13564655826
Main Advantages
X-ray Inspection System
TIMA platform

High Sensitivity and Accuracy

Low Energy Consumption and Low Radiation

Modularized Hardware Platform

High Level Hygienic Design

Excellent Image Processing Algorithm


High resolution detector

4-5 times better in exposure compared with standard 0.4mm detector

With high resolution detector, low power generator is required, higher sensitivity, longer service time, low radiation and maintenance cost.

High IP protection level

X-ray detector: IP67

Inspection tunnel: IP67

IP69K for meat and seafood products


Updated software

Intelligent software for plastic, shell etc

Auto-learning function

Remote-setting

User-friendly

Big touch screen

Multiple language

Automatic monitoring interface

Ethernet and USB port


Completed solution

Different configuration based on different requests

Various rejecter systems

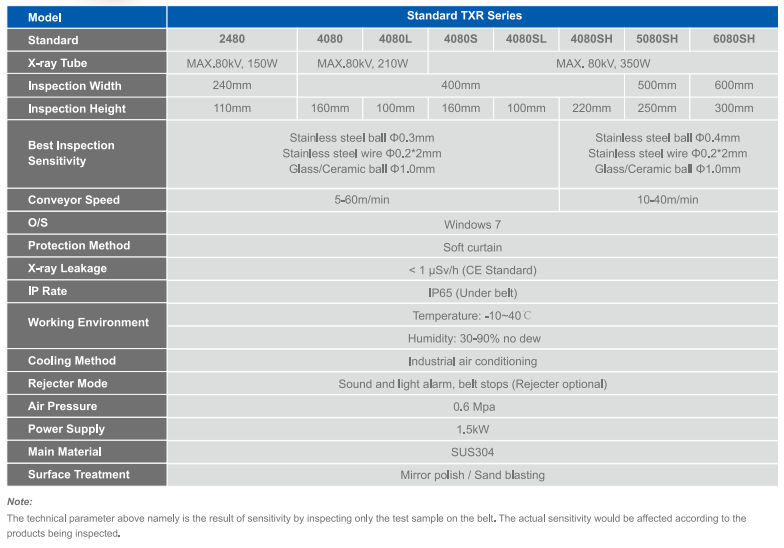

Parameter
X-ray Inspection System

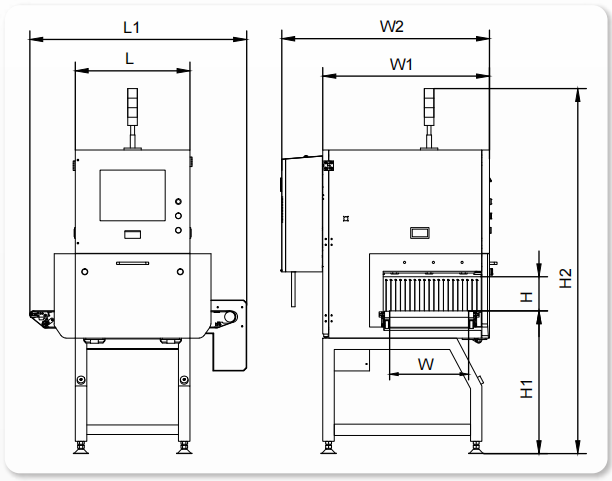

External Dimensions
X-ray Inspection System

food x-ray machine meat x-ray machine can x-ray machine
