Dried Pepper Chilli X-Ray Inspection System

Dried Pepper Chilli X-Ray Inspection System

Dried Pepper Chilli X-Ray Inspection System is widely used for pre-packaging product like nuts, grains, corns, raisins, sunflower seeds, bean, frozen fruits, cashew.


Contaminants: metal contaminants, non-metal contaminants including glass, stone, ceramic, hard rubber, insects, stick, mould, wormhole, shell, germination, etc.


Machine components:

Vibration device + X-ray inspection system + 32/48/72 air jet rejecter system

Vibration device to make sure material pass through the X-ray steadily and even, increasing the inspection sensitivity and rejecter accuracy.

X-ray inspection system with unique software, to make sure contaminants inspection.

32/48/72 air jet rejecter system, to make sure minimum quantity of waste.

X-ray inspection system and air jet rejecter system are integrated in one frame, eventually achieving easy installation and parameter setting.


CONTACT US
SEND INQUIRY NOW
Phone:
0086-13564655826
WeChat:
0086-13795234948
WhatsApp:
0086-13564655826
Main Advantages
Dried Pepper Chilli X-Ray Inspection System
Wider range contaminants inspection

Hard rubber, insects, stick, mould, wormhole,

shell, germination, etc are possible.


High resolution detector

4-5 Times better in exposure compared with standard 0.4mm detector.

With high resolution detector, low power generator is required, higher sensitivity, longer service time, low radiation and maintenance cost.

High IP protection level

X-ray detector: IP67

Inspection tunnel: IP67



High sensitivity and stability, big capacity
Max speed supports 120m/min

Easy installation and setting

X-ray, together with air rejecter system, are easy to be installed.

Remote setting is possible.


Completed solution

Different configuration based on different requests

Various rejecter systems

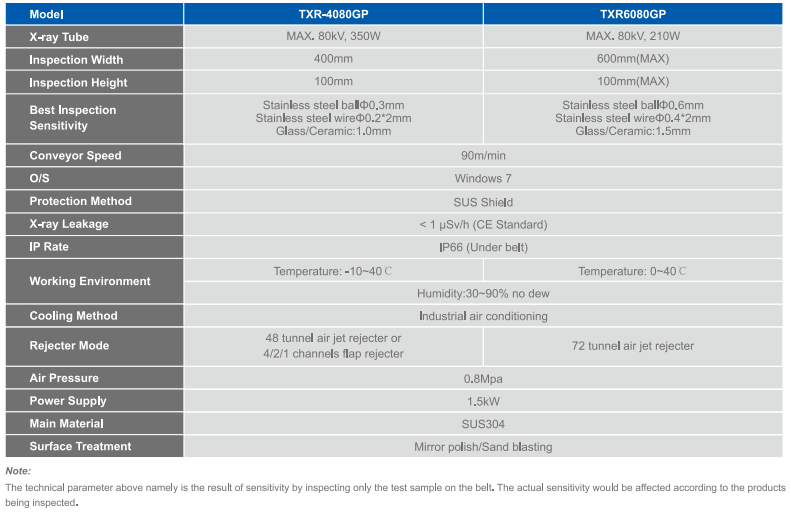

Parameters
Dried Pepper Chilli X-Ray Inspection System

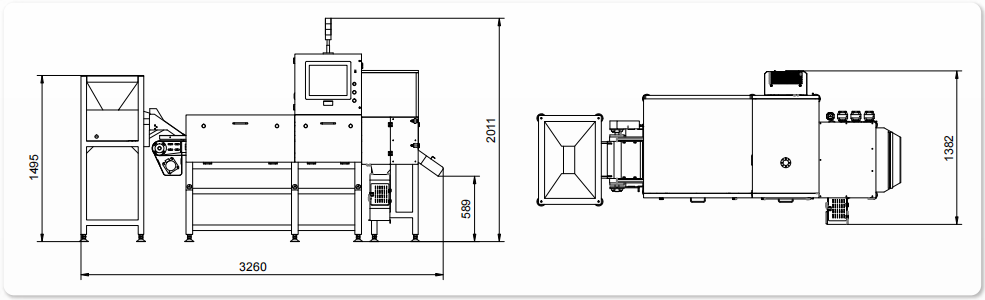

External Dimensions
Dried Pepper Chilli X-Ray Inspection System

food x-ray machine
